Easy Installation Marine Dock Fender Weather Seawater Resistant

1
MOQ
USD8 to 582 Per Piece
harga
Easy Installation Marine Dock Fender Weather Seawater Resistant
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Nama Produk: Fender Tipe V
Warna: Hitam atau Disesuaikan
Aplikasi: Pelabuhan Dermaga Dermaga Dermaga Kapal
Bahan: NR Berkualitas Tinggi
Bagian: Dock Bumper
Kekerasan: ≤82 pantai a
Fitur: Perusahaan Penggantian Mudah untuk Pemasangan
Menyoroti:

V type marine dock fender

,

seawater resistant dock bumper

,

easy install boat fender

Informasi dasar
Tempat asal: Cina
Nama merek: Hongruntong Marine
Sertifikasi: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Nomor model: HM-VTF16
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Palet, kotak kayu
Waktu pengiriman: 5-7 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 3000 PC per bulan
Deskripsi Produk

Easy Installation Marine Dock Fender Weather Seawater Resistant





Description



V Type Fender is a high-performance marine protection solution engineered to absorb impact energy and safeguard vessels and port structures during berthing operations. Constructed from premium marine-grade rubber with superior compression resistance and durability, the V-shaped profile enhances energy distribution and minimizes docking stress. This design effectively reduces structural damage to both ships and harbor infrastructure, ensuring long-term operational safety and efficiency.





Case Study


A commercial port handling container vessels up to 15,000 DWT faced recurring docking damage and rising maintenance costs due to outdated fender systems. After installing V Type Fender units along the berthing line, impact forces during vessel contact were significantly reduced. Structural repairs decreased by 40% within the first operational year, and docking efficiency improved due to safer and smoother berthing operations. Port operators reported enhanced operational reliability and reduced downtime, highlighting the product’s effectiveness in demanding marine environments.





Specifications



Product Name V Type Fender
Material High Performance Natural Rubber
Standard HGT2866-2016, PIANC2002
Shape V Type
Feature Easy Replacement Firm for Installation
Part Dock Bumper
Usage Dock Port Wharf Boat Ship
Surface Matte/Smooth
Packing Pallet or Wooden Case
Keywords Arch Rubber Fender/V Rubber Fender



Model A D E F H K M R x Q Lmax
V Type [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
HM-VTF150 50 240 326 98 150 16 - 20 108 20 × 40 3000
HM-VTF200 50 320 422 130 200 18 - 25 142 25 × 50 3000
HM-VTF250 62.5 400 500 163 250 20 - 30 164 28 × 56 3500
HM-VTF300 75 480 595 195 300 25 - 32 194 28 × 56 3500
HM-VTF400 100 640 808 260 400 25 - 32 266 35 × 70 3500
HM-VTF500 125 800 981 325 500 25 - 32 318 42 × 84 3500
HM-VTF600 150 960 1160 390 600 28 - 40 373 48 × 96 3000
HM-VTF800 200 1300 1550 520 800 41 - 50 499 54 × 108 3000
HM-VTF1000 250 1550 1850 650 1000 50 - 62 580 54 × 108 3000
 *Note: Other sizes can be customized according to the requirements.





Features



Superior Impact Absorption and Energy Distribution
V Type Fender is designed to dissipate docking forces efficiently, reducing direct impact on vessels and port structures. The V-shaped profile ensures even energy distribution, minimizing localized stress and extending the lifespan of marine infrastructure. This feature is particularly valuable in high-traffic ports where repeated berthing operations demand robust protection solutions.



Durable Marine Grade Construction
Manufactured from high-quality rubber materials, the fender offers excellent resistance to seawater corrosion, UV exposure, and mechanical wear. These properties ensure reliable performance in harsh marine environments with minimal maintenance requirements. The product’s durability reduces operational costs and supports long-term infrastructure investment.



High Compression and Elastic Recovery
The fender maintains structural integrity under repeated compression cycles, providing consistent performance over extended operational periods. Its strong elastic recovery capability restores shape and functionality after impact, ensuring ongoing protection and operational reliability. This characteristic enhances safety and reduces the risk of material fatigue.



Low Maintenance and Cost Efficiency
V Type Fender is engineered for durability and ease of use, requiring minimal maintenance throughout its service life. Its robust construction reduces repair and replacement frequency, offering a cost-effective solution for marine infrastructure protection. This efficiency supports sustainable operational practices and long-term value.





Applications



Port and Harbor Berthing Protection
V Type Fender is widely used in commercial ports and harbors to protect docking areas from vessel impact. It enhances operational safety and reduces structural damage, supporting efficient maritime logistics and infrastructure longevity. The product is suitable for ports handling vessels of various sizes and operational demands.



Shipyards and Dry Dock Facilities
In ship maintenance and repair environments, the fender provides reliable protection during vessel movement and handling operations. Its shock-absorbing properties minimize structural stress and enhance workplace safety, improving operational efficiency in demanding marine settings.



Offshore and Marine Engineering Projects
The product supports offshore operations by providing impact protection and structural stability in marine engineering applications. Its durability and performance make it suitable for diverse maritime projects, including infrastructure development and vessel support systems.





Why Choose Hongruntong Marine



Industry Expertise and Engineering Excellence
With extensive experience in marine protection solutions, we deliver high-quality fender systems designed for reliability and performance. Our engineering capabilities ensure products meet international standards and operational requirements, providing customers with trusted marine solutions.



Premium Materials and Advanced Manufacturing
We utilize marine-grade rubber and precision manufacturing techniques to produce durable and efficient fender systems. This commitment to quality enhances product longevity and operational effectiveness, supporting long-term infrastructure investment and operational safety.



Customized Solutions for Diverse Applications
Understanding that every port and vessel operation is unique, we offer tailored fender designs to meet specific project requirements. Customized solutions optimize performance and compatibility with existing infrastructure, ensuring maximum operational value.



Comprehensive Customer Support
From product selection to installation guidance and after-sales service, we provide end-to-end support to ensure customer satisfaction. Our professional team is dedicated to delivering reliable solutions and long-term value, building strong partnerships with clients worldwide.





FAQ



1. What materials are used in V Type Fender?
V Type Fender is manufactured from high-quality marine rubber with excellent compression resistance and durability. These materials ensure reliable performance in harsh marine environments and long service life, reducing maintenance requirements.



2. Can the fender be customized for different port requirements?
Yes, we offer customized solutions to meet specific operational needs. Dimensions, load capacity, and installation configurations can be tailored to suit diverse marine applications, ensuring optimal performance and compatibility.



3. How does V Type Fender reduce docking damage?
The V-shaped design absorbs and distributes impact energy, minimizing direct force on vessels and port structures. This reduces structural stress and enhances operational safety, protecting marine infrastructure and improving berthing efficiency.



4. What maintenance is required?
V Type Fender requires minimal maintenance due to its durable construction. Periodic inspections and cleaning are recommended to ensure optimal performance and longevity, supporting cost-effective operational practices.



5. Is the product suitable for extreme weather conditions?
Yes, the fender is designed to withstand UV exposure, seawater corrosion, and temperature variations. Its robust materials ensure reliable performance in diverse marine environments, providing consistent protection and operational stability.

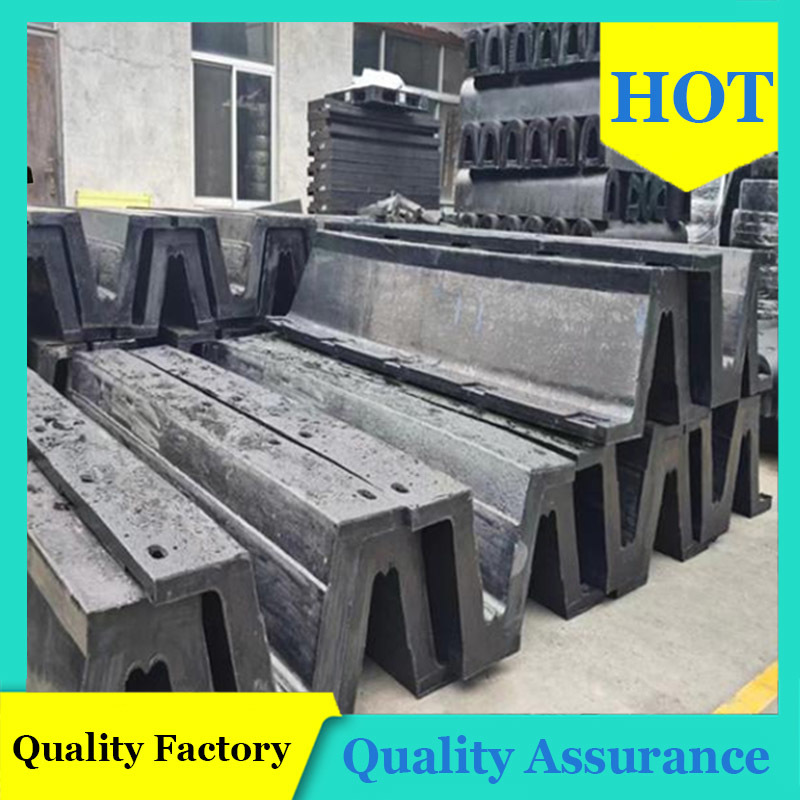

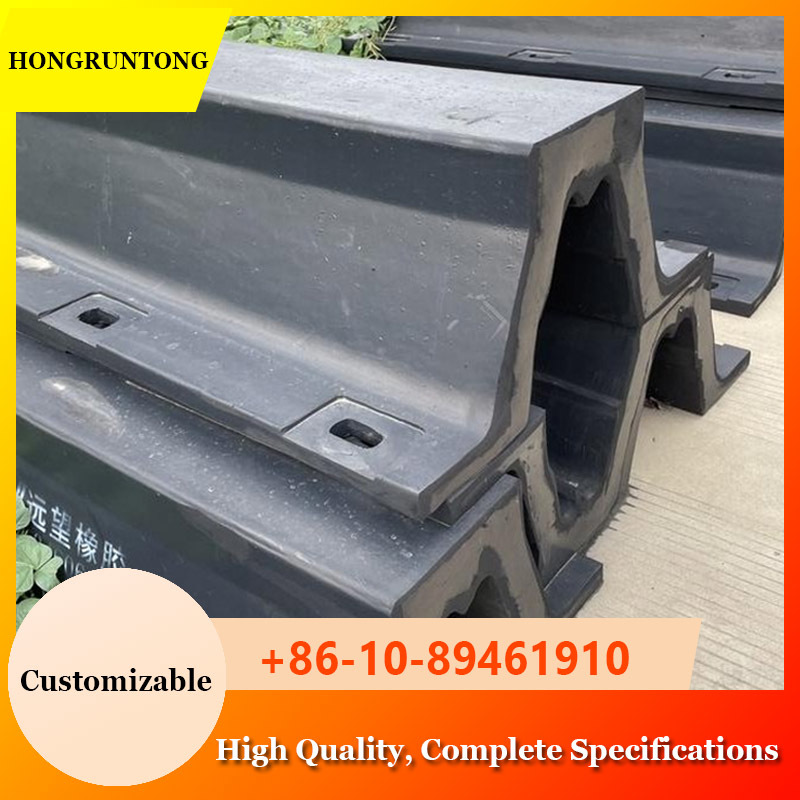

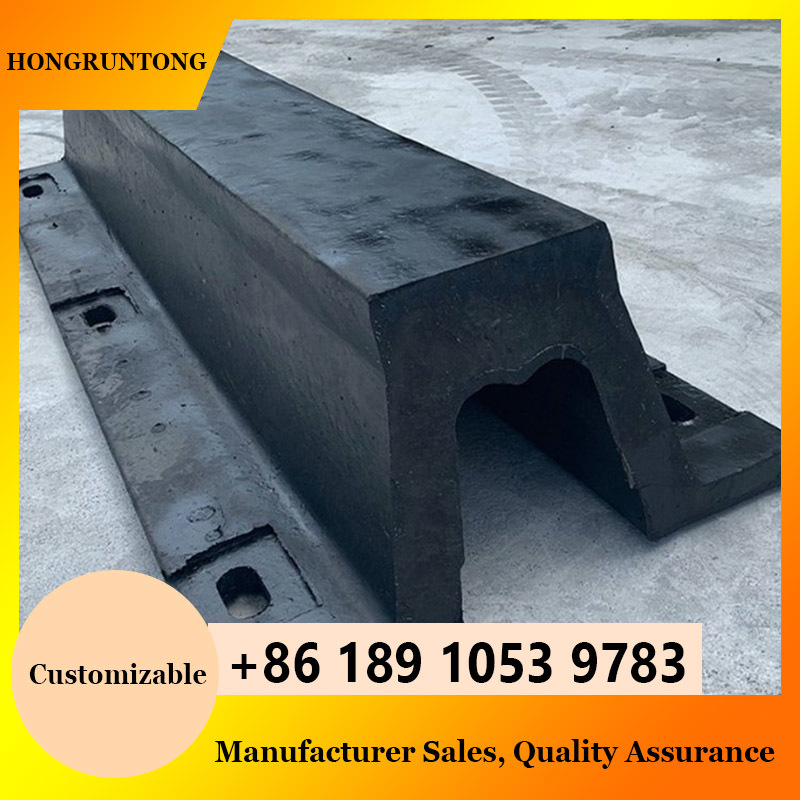

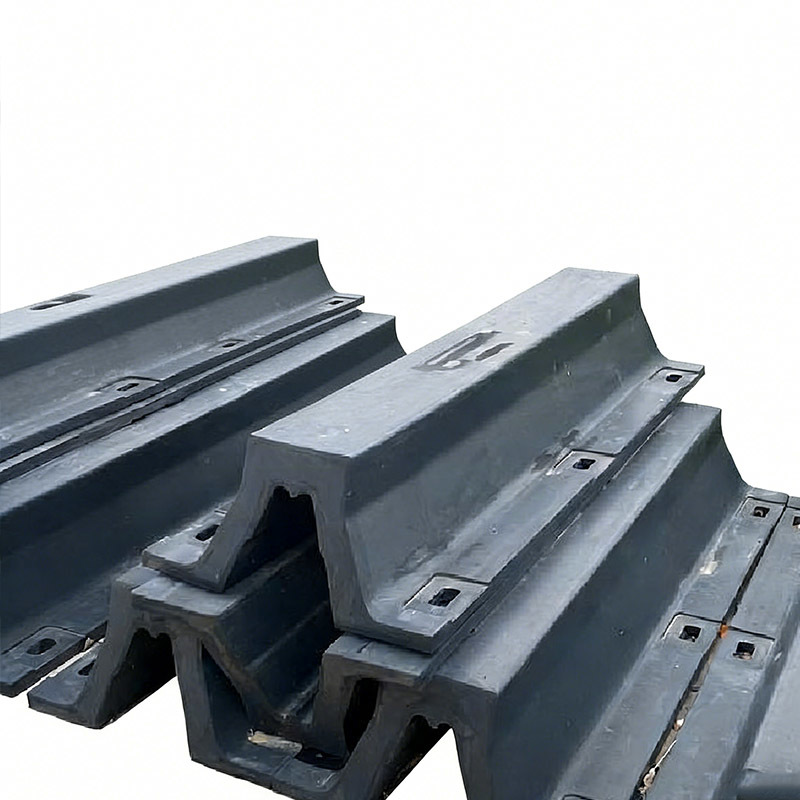

Easy Installation Marine Dock Fender Weather Seawater Resistant 0Easy Installation Marine Dock Fender Weather Seawater Resistant 1Easy Installation Marine Dock Fender Weather Seawater Resistant 2Easy Installation Marine Dock Fender Weather Seawater Resistant 3
